Automatic print-to-wash. Integrated post-curing.

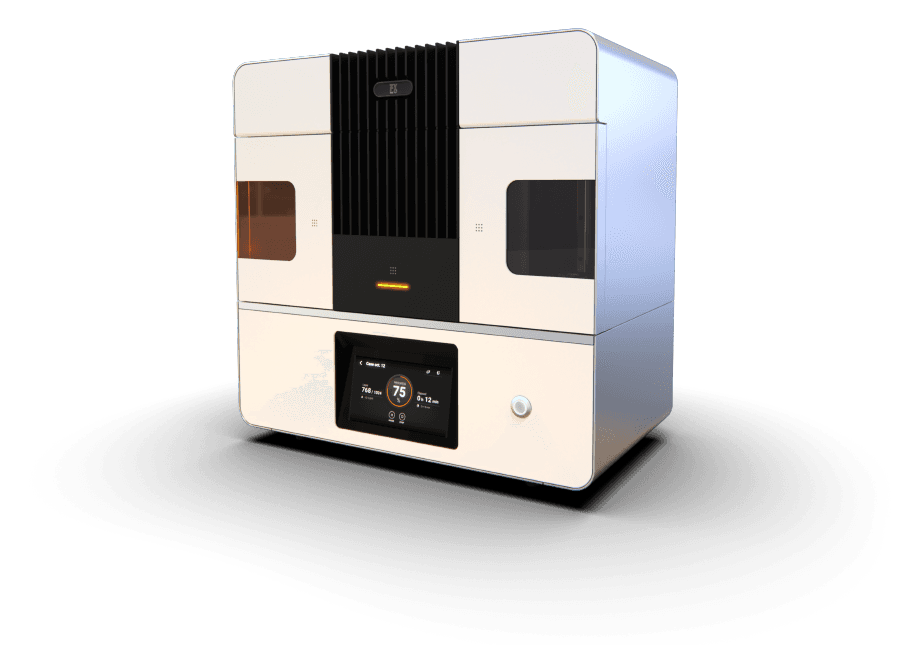

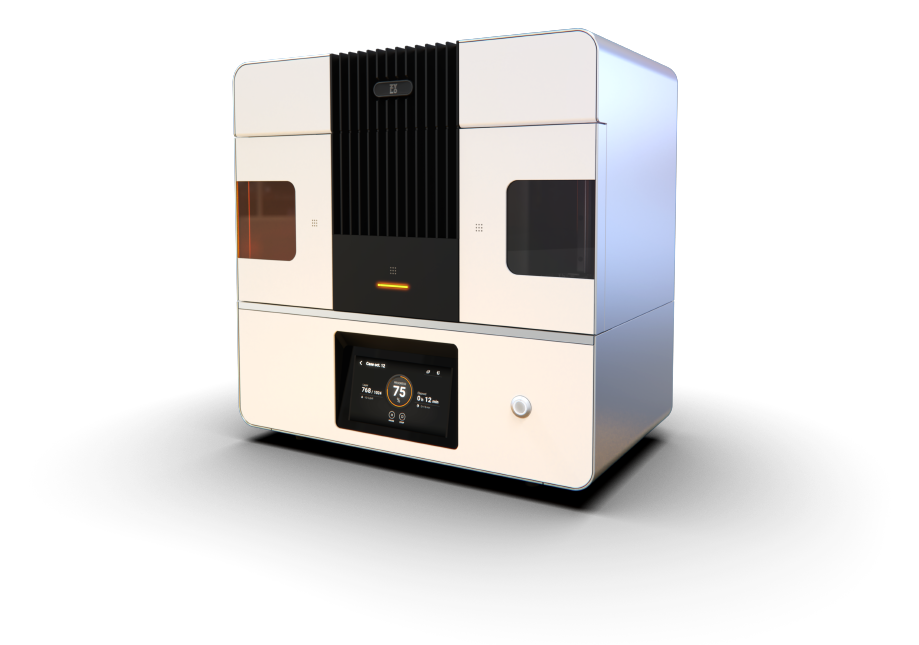

ZyloDent combines DLP printing, automatic transfer into a controlled IPA washing chamber, and multi-wavelength thermal post-curing in one machine. Prepare jobs in ZyloPrep AI-Assisted CAM and run material-specific workflows with fewer devices, fewer handoffs and clear guidance through every manufacturing stage.
Validated numbers across Zylo3D platform installations.
XY Resolution
50 µm
Sharp detail across the build area
Layer Thickness
50–100 µm
Tunable for speed or surface finish
Build Volume
130×70×85 mm
5.1×2.75×3.3 in footprint
DLP Engine
405 nm
Full-layer digital light processing
Resin Vat
Temperature-controlled
Consistent resin conditioning
Print-to-Wash
Automatic transfer
Integrated handoff after printing
Wash System
Bubble Jet
Proprietary IPA washing
Solvent Monitor
Automatic detection
Washing level sensing built in
Post-Curing
365, 385 & 405 nm
Multi-wavelength UV exposure
Curing Power
90 W
Five-sided illumination with 360° rotation
One machine for printing, washing and post-curing

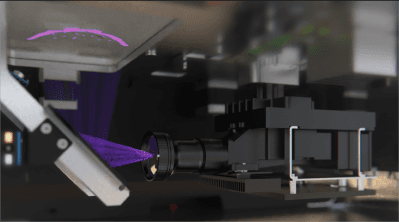

ZyloDent uses a powerful 405 nm UV DLP light engine to cure each full layer at once, delivering print speeds of up to 40 mm/hour at 100 µm layer thickness. With 50 µm XY resolution, high light uniformity, it delivers sharp details, accurate geometry and consistent performance across the 130 × 70 mm build area.

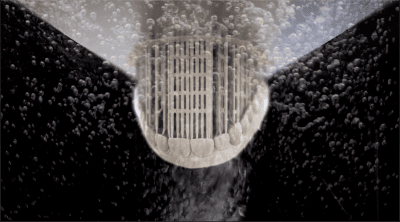

After printing, ZyloDent automatically transfers the build platform into its integrated washing chamber. The bubble-jet based washing system runs a material-specific cycle using > 97% IPA.

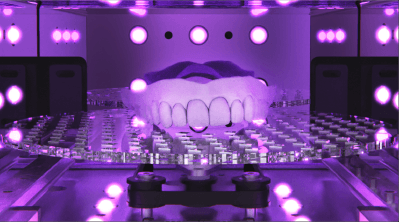

After required cleaning, support removal or application-specific preparation, parts are placed in the integrated curing chamber. Multi-wavelength UV exposure, controlled heat and rotating five-sided illumination support a wide range of dental-material protocols.
A connected workflow from approved design to finished part
Quick capture for the indication.
ZyloCAD or partner CAD workflows.
ZyloPrep reduces guesswork.
Automated print + wash and cure.
Designed for same-visit delivery.
Validated workflows for every indication your lab needs.
Permanent and provisional restorative applications, from single crowns and bridges to veneers, inlays and onlays.
Validated workflows available
Accurate dental models for restorative, implant, orthodontic and laboratory workflows, prepared in ZyloPrep and manufactured in ZyloDent.
Validated workflows available
Implant surgical guides manufactured through a controlled workflow from approved planning and design to final clinical preparation.
Validated workflows available
Custom occlusal appliances manufactured with material-specific profiles for fit, durability and consistent clinical production.
Validated workflows available
Custom-fit athletic mouthguards manufactured with resilient dental materials and a repeatable digital workflow.
Validated workflow available
Denture bases, try-ins and teeth produced through a connected digital design and integrated manufacturing workflow.
Validation in progress

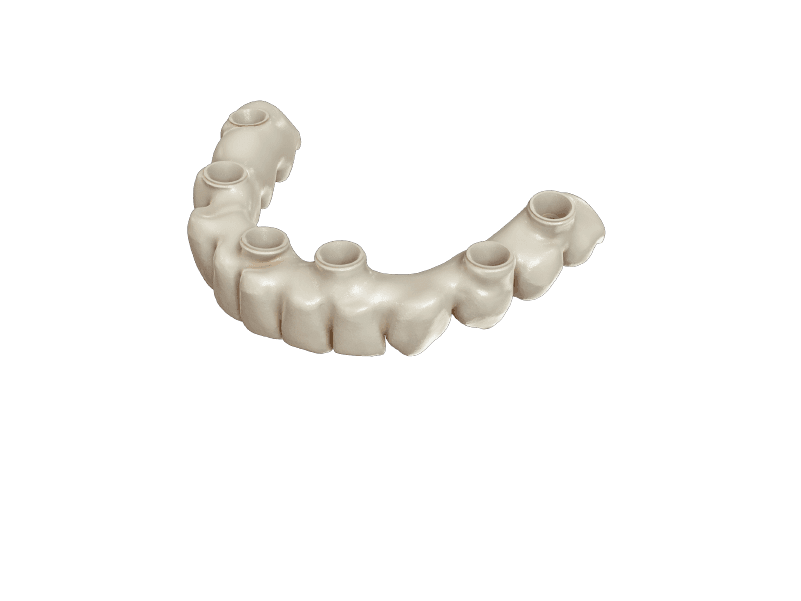

Full-arch and implant-supported restorations produced through a controlled digital workflow with dedicated high-performance materials.
Validation in progressZylo develops material-specific print, wash and post-curing profiles with dental-material manufacturers.
Built to standardize outcomes across every team member and every shift.
AI-assisted workflows. Standardize design outcomes across your team regardless of experience level.
One-click file preparation that eliminates slicing guesswork and validates print parameters automatically.
Job queue, validated presets, analytics, and remote monitoring: all from your Zylo3D account.
Estimate your savings by bringing production in-house.
| Indication | Cases per Month | Avg. lab cost per case ($) |
|---|---|---|
| Aligners | ||
| Dentures | ||
| Crown & Bridge | ||
| Night Guards | ||
| Surgical Guides |
Scenario A
Design Service and In-house printing
$0
Scenario B
In-house Design and Printing
$0
Core printing + integrated wash and cure.
Contact us for a PDF download and comparison chart.
Everything you need to hit the ground running: hardware, onboarding, and ongoing support.
Warranty, service plans, replacement parts logistics, and support SLA.
Standard warranty included. Extended service plans available for full coverage on parts, labor, and preventive maintenance.
Onboarding, protocol guidance, enablement resources, and ongoing support to help your team grow throughput.
Live chat, remote diagnostics, and fast parts fulfillment. If something goes wrong, we'll have you back up quickly.
Real outcomes from labs and clinics using ZyloDent.
"It's been very reliable, it's a great system, it's very accurate." — Dr. Jay Siddiqui
"Zylo is all-in-one, you are able to flow in, and the footprint is so much smaller." — Dr. Adam Davis
"On the 3D printed restoration by Zylo, how great this fit is!" — Dr. Rick Ferguson
ZyloDent supports 7 validated indications including Crowns, Bridges & Restorations, Dental Models, Surgical Guides, and more. Each indication comes with resin mapping and accuracy reporting.
Onboarding includes an install and validation call, followed by assistant training covering standard operating procedures. Most teams are running independently within the first 10 guided cases.
ZyloDent accepts open STL and PLY file inputs from any intraoral scanner. ZyloDent works seamlessly with ZyloCAD, ZyloPrep, and all Zylo3D validated materials.
Routine maintenance involves quick weekly and monthly checklists. Consumables tracking is managed through your Zylo3D account. Estimated hands-on time per check is minimal.
The system logs every job (resin lot, presets, and timestamps) for QA. In the event of a failure, alerts are generated with diagnostic information. Our support team provides remote diagnosis and fast parts fulfillment.
Book a demo and we'll recommend the best starting indication for your practice.
